Single Panel Architectural Frame System
The Single Panel Architectural Frame System is a sleek aluminum post and frame built for permanent signage that still needs to change from time to time. The frame holds one panel, and the panel comes out with a screwdriver by removing the top cap, so a new message goes in without digging anything up. Each frame is manufactured from aluminum with a durable powder-coated finish and is custom built to the size of your panel.
Frames are priced by panel size, and the panel size and the visible area are not the same. See the visible area notes below, and contact us if you need help with sizing or a custom specification.
This product does not include the sign panel.
Features:
- Frame Style: single panel architectural aluminum frame with square posts
- Substrate Compatibility: accepts 3MM and 6MM panels
- Panel Requirement: one panel, printed on one or two sides
- Panel Mounting: flush mounted; the panel slides in from the top and the cap locks it in place
- Panel Coverage: about 3/4" of each panel edge sits inside the frame
- Panel Size: 18" to 60" high, 24" to 96" wide
- Post Size: 2 1/2" x 3" square aluminum posts
- Post Height: 6', 7', or 8', or 10' using an 8' post with 2' post extensions that ship by ground
- Finish: durable powder-coated aluminum in white
- Assembly Time: about 5 to 10 minutes
Sign Panel Size vs. Visible Area
The frame covers about 3/4" of the panel on every edge, so the visible area is about 1.5" narrower and 1.5" shorter than the panel you order. Your panel is still made at the full size you order.
- Visible height = panel height minus about 1.5" (3/4" behind the top cap and 3/4" behind the bottom rail).
- Visible width = panel width minus about 1.5" (3/4" behind each side).
- A 24" H x 36" W panel shows about 22.5" H x 34.5" W. A 48" H x 96" W panel shows about 46.5" H x 94.5" W.
Keep your logo, text, and phone number inside the visible area. Do not add material to compensate: the panel stays at the size you order.

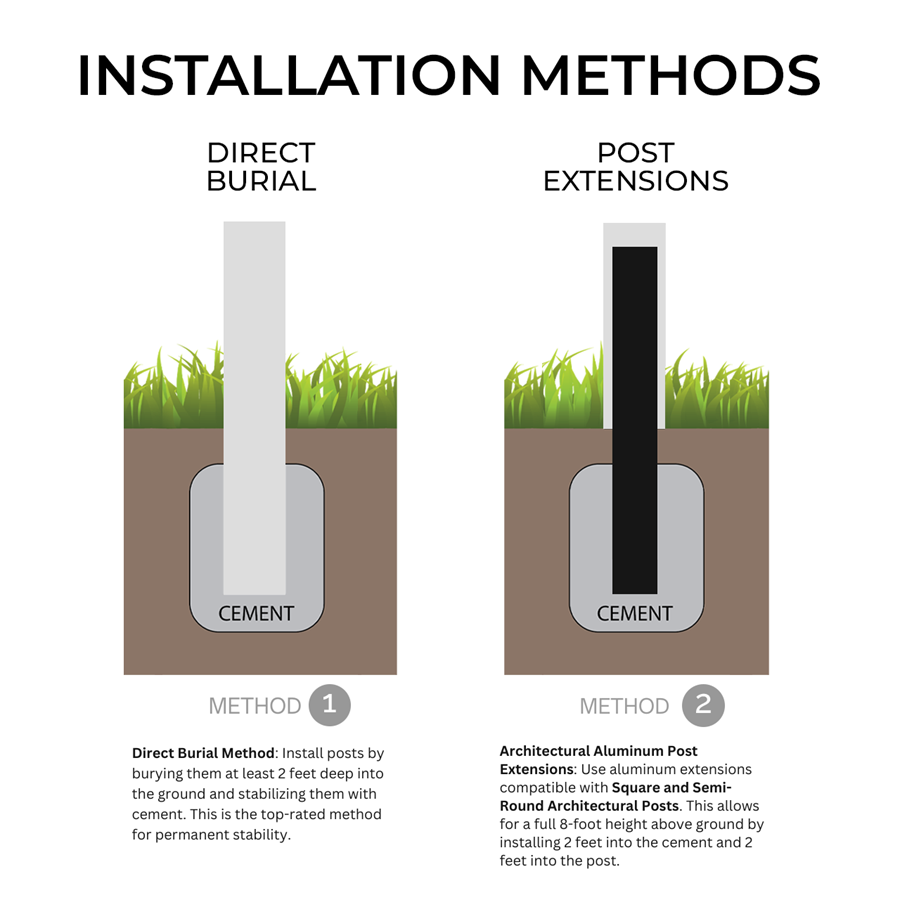

Installation
- Direct burial: set the posts at least 2' into the ground and secure them with concrete. This is the recommended method for a permanent installation.

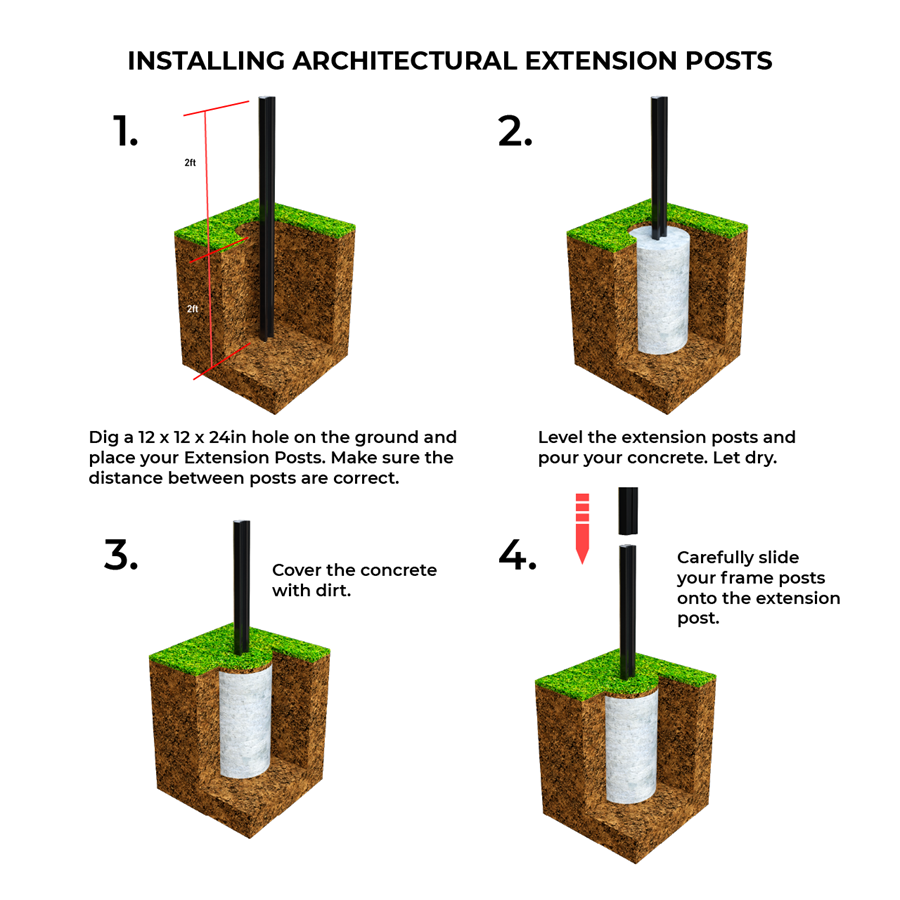

- Post extensions (10' option): the 2' aluminum extensions set 2' into the ground in concrete and 2' up into the post, so an 8' post stands 8' above grade and the whole order still ships by ground. Sold as a set of 2 and included with the 10' post height option.
Panel Mounting Detail
The panel slides into the frame channel, the top cap presses down to lock it in place, and two screws secure the cap. Removing the cap with a screwdriver is all it takes to swap the panel.
Call 811 before you dig so underground lines are marked.
See This Frame In Your Space
Each link opens a 3D model you can spin. On a phone it will also drop the frame into your yard at full size. Sizes are listed height by width.
Documents
- Product Flyer (PDF): the frame in the field, visible area, installation options, and the seven sizes we show in 3D drawn to scale against a 6' person.
FAQ
How soon can this ship?
- These are fabricated on order. Please allow 2-3 business days before shipping. Ground shipping times are 2-4 business days after fabrication.
What is the difference between this frame and the Double Panel Multi Sign Architectural Frame System?
- The double panel frame holds two stacked panels, such as a main sign with a second message below it. The single panel frame holds one panel and is the simpler, lower cost choice when one sign face is all you need.
Where can I get custom signs for this frame?
Where can I get a 48" or wider sign?
- We recommend finding a local sign manufacturer for signs of this size. This is because 48" wide signage must be shipped freight and would carry a $250-$350 shipping charge.
